The Structuralist Architectural Drawing 1955-1980
The Structuralist Architectural Drawing: Five Types
There are various types of Structuralist visualisations, characterised by the representation of an integral space, multiple perspectives (standpoints), and a suggestion of infinity and extendibility. These are expressed in different types of drawings: the spacial projection, the horizontal section with colour, the three-dimensional grid, the hybrid drawing and the narrative drawing.
Spacial projections
The Structuralist architects employed a variety of spatial projections, such as cut-away aerial views, experiments with perspectives and variants on axonometric projections. Axonometric and isometric projections, for example, are representations of a spatial design with the help of parallel lines without a vanishing point. They differ in terms of the angle of the lines employed. The result is a representation that is not observable in reality. It visualises spatial relationships in all directions and in relation to each other, resulting in the representation of an integral space.

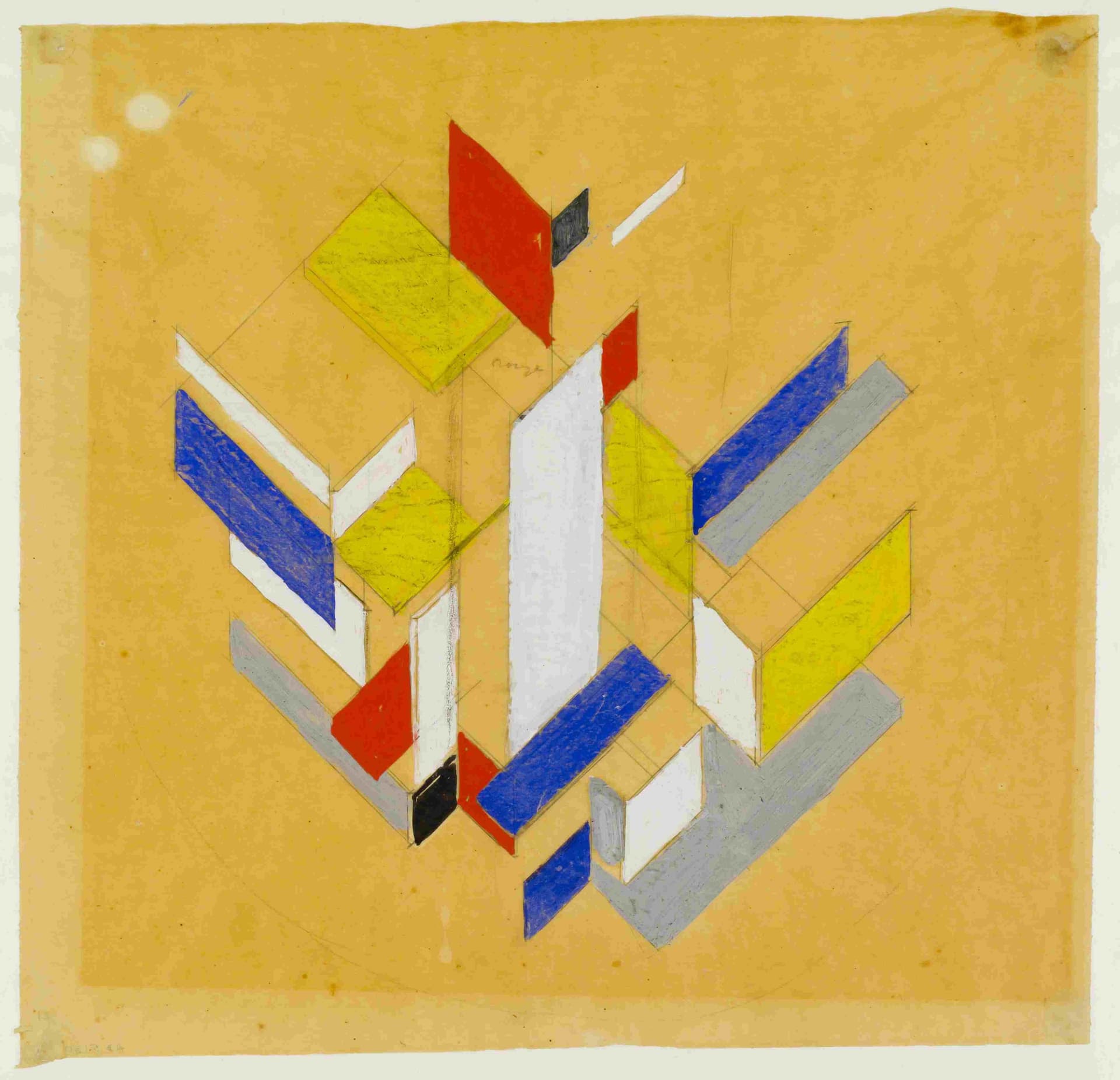

Around 1925, artists and architects such as El Lissitzky, Kazimir Malevich, Theo van Doesburg and Cornelis van Eesteren became fascinated with axonometric projections because of their multi-directional, rotational dynamic and relationship between interior and exterior. The Contra-Constructions of Van Eesteren and Van Doesburg were shown in exhibitions in the 1950s, and architecture students were instructed in making axonometric projections, which replaced conventional perspective drawings. The Structuralists used axonometric projections because this representational form fitted with their striving for an integral space, the visualisation of multiple perspectives (standpoints) and the suggestion of infinity and extendibility.

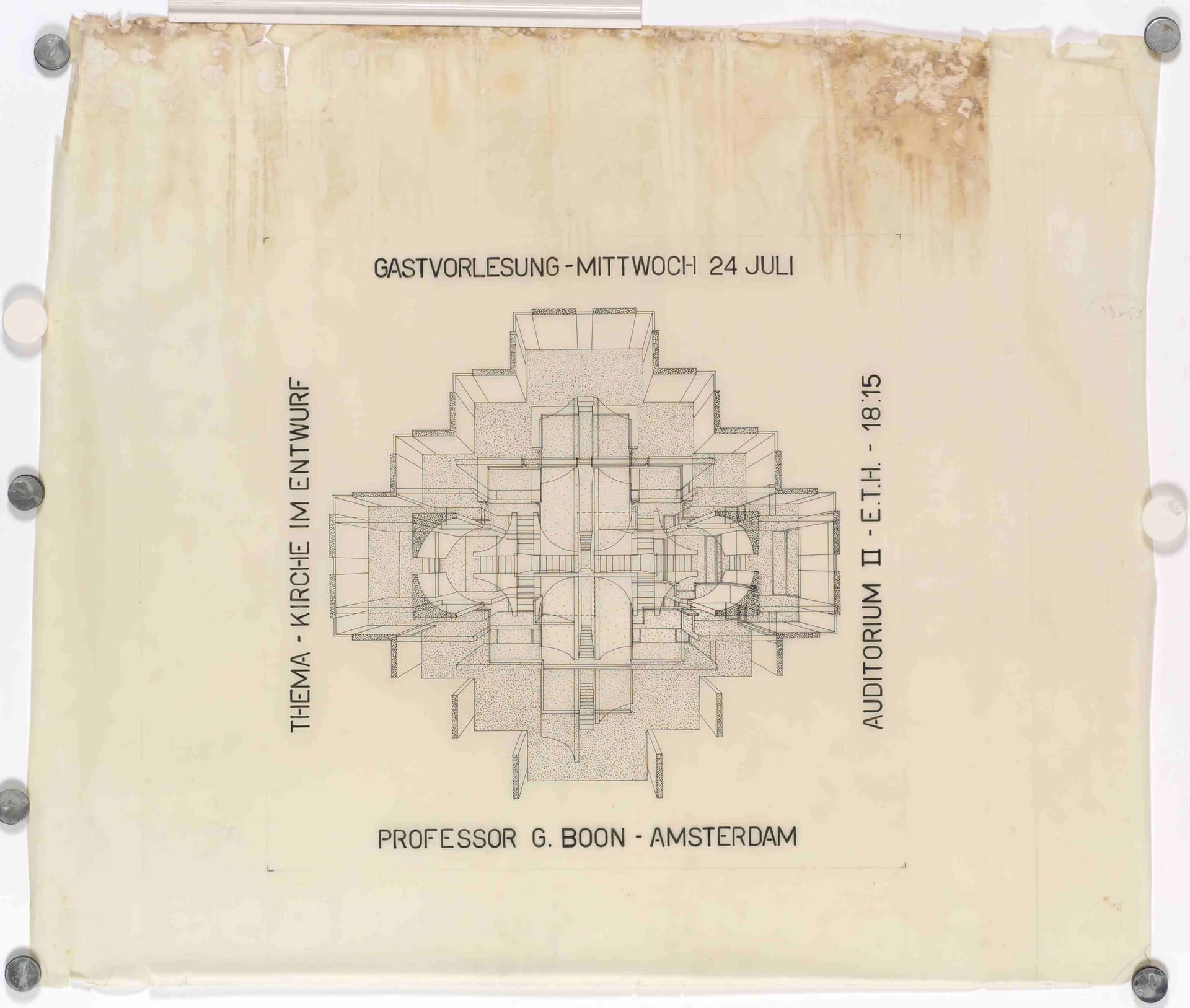

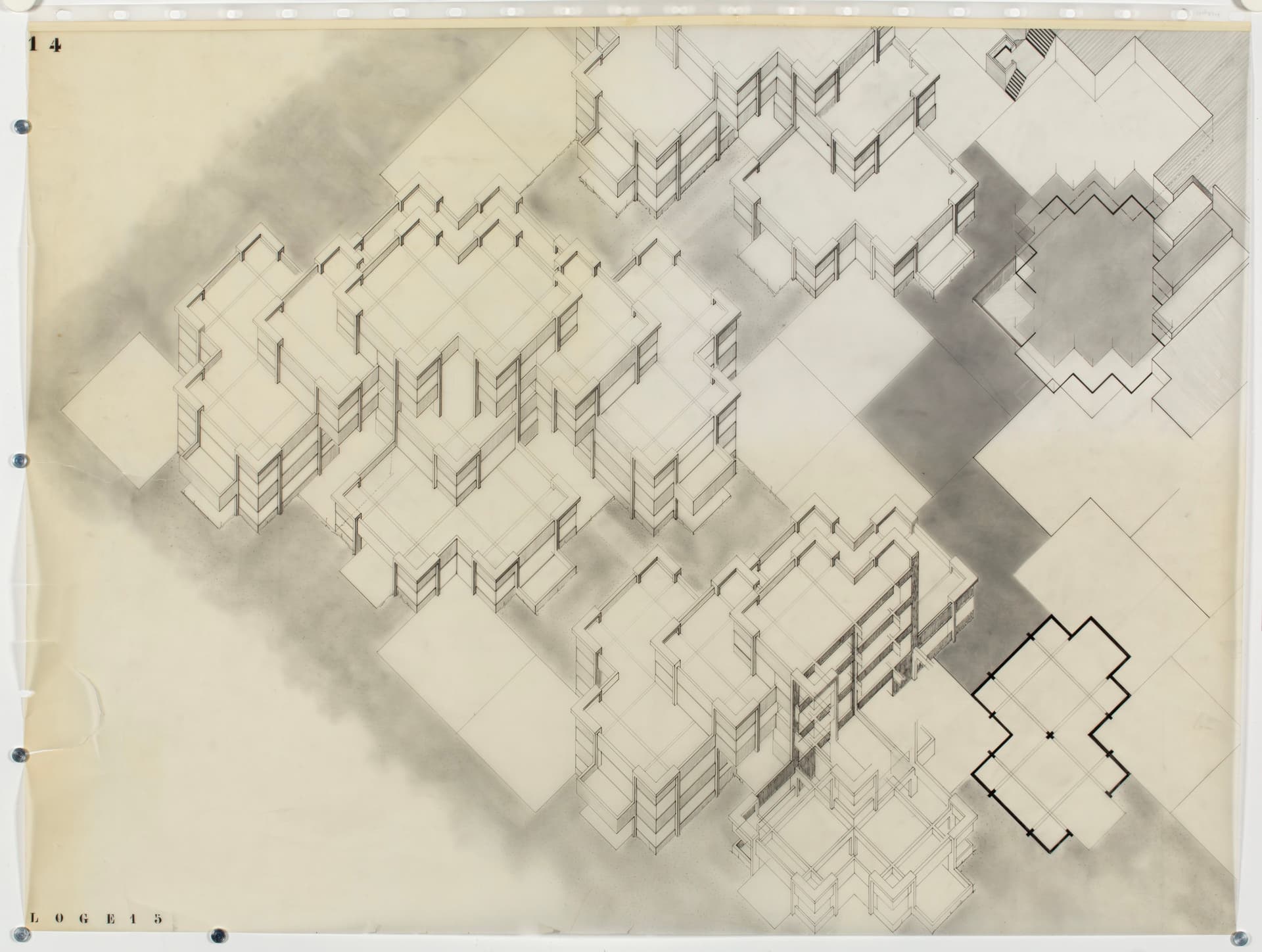

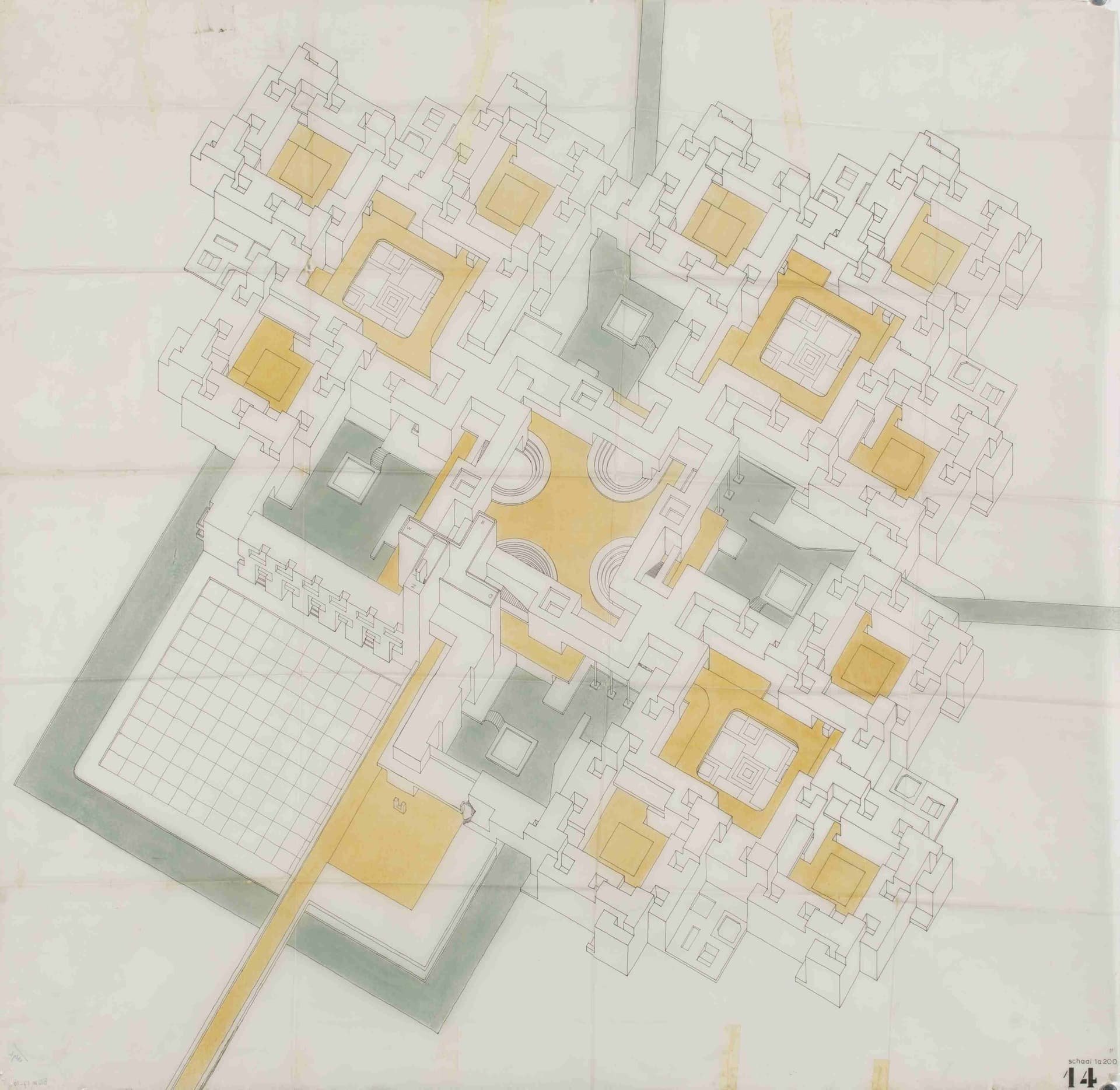

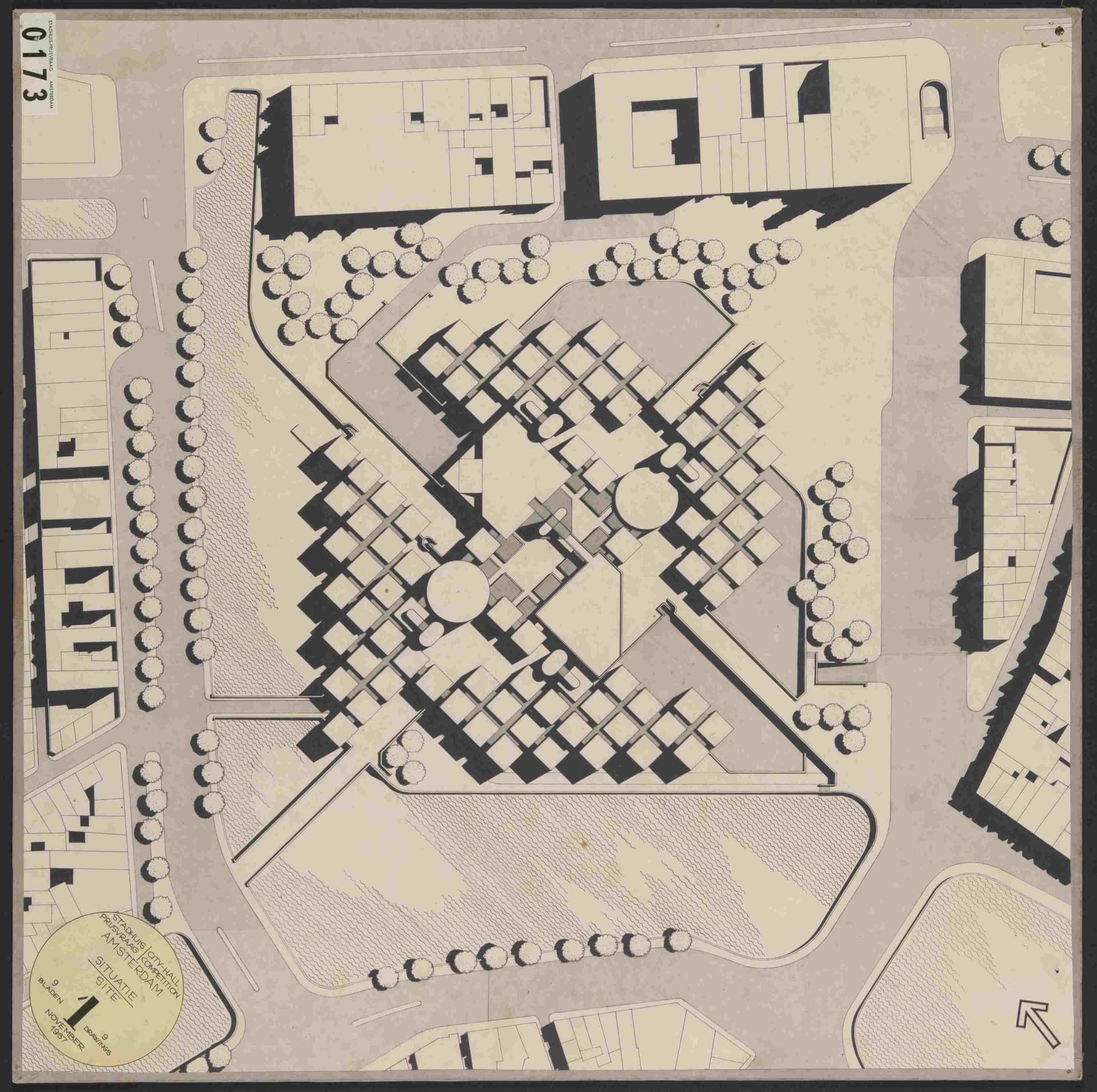

Piet Blom. presentation drawing and axonometric projection for an orphanage for the Prix de Rome (final round), 1962. Collection Het Nieuwe Instituut, BLOM 17-10. Water is represented by grey; the streets and piazzas sited on a higher level are in yellow.

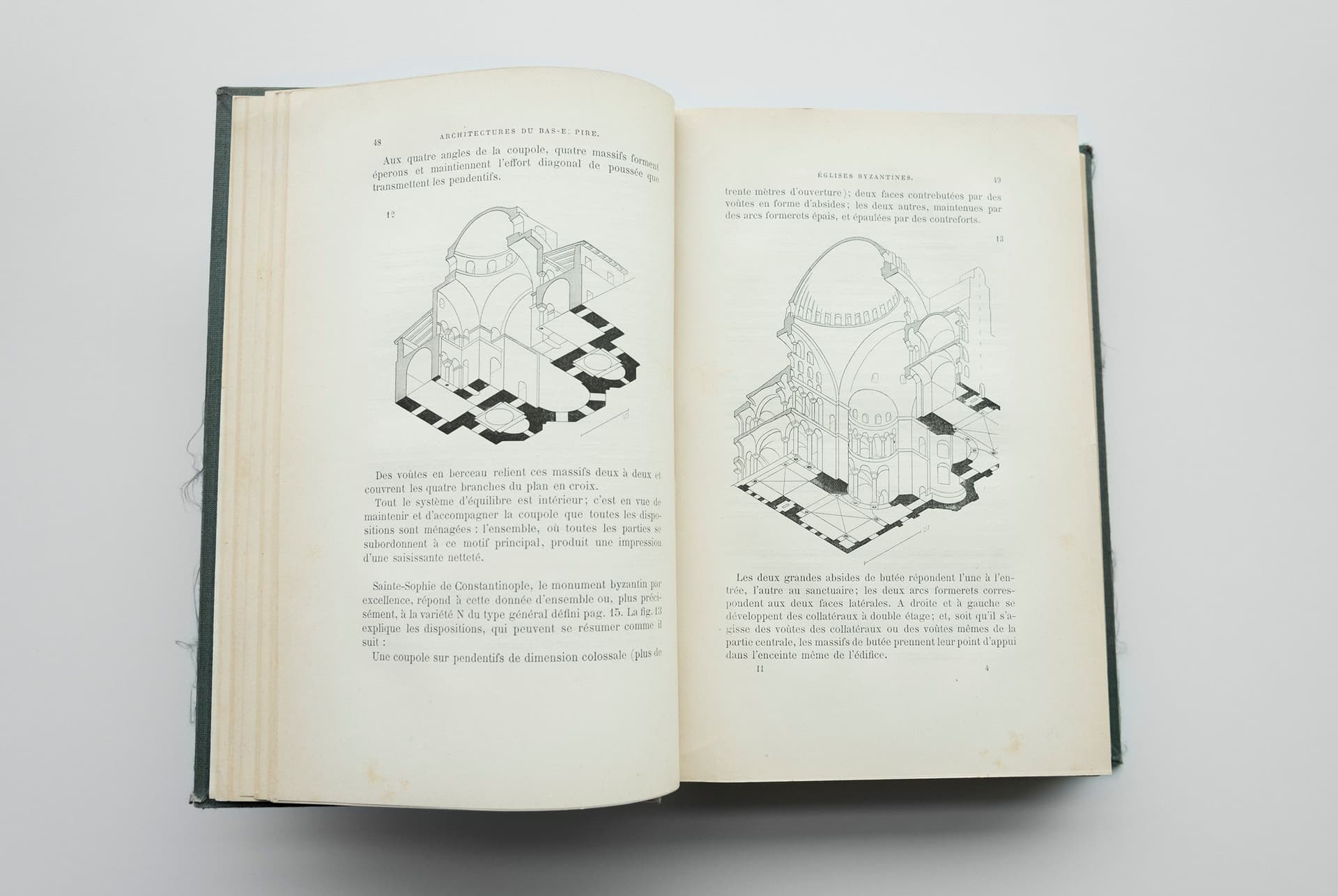

Auguste Choisy, Histoire de l’architecture, vol. 2, 1929 (first edition: 1899). Collection Het Nieuwe Instituut. At the end of the nineteenth century, the architecture historian Auguste Choisy discovered the value of axonometric and isometric projections for architectural representations. It facilitated a precise and complete representation of complex architectural space on a flat surface. He demonstrated this by illustrating axonometric and isometric projections of Byzantine, Egyptian and Roman structures, which made a deep impression on artists and architects such as El Lissitzky, Theo Van Doesburg and Cornelis van Eesteren.
The three-dimensional grid

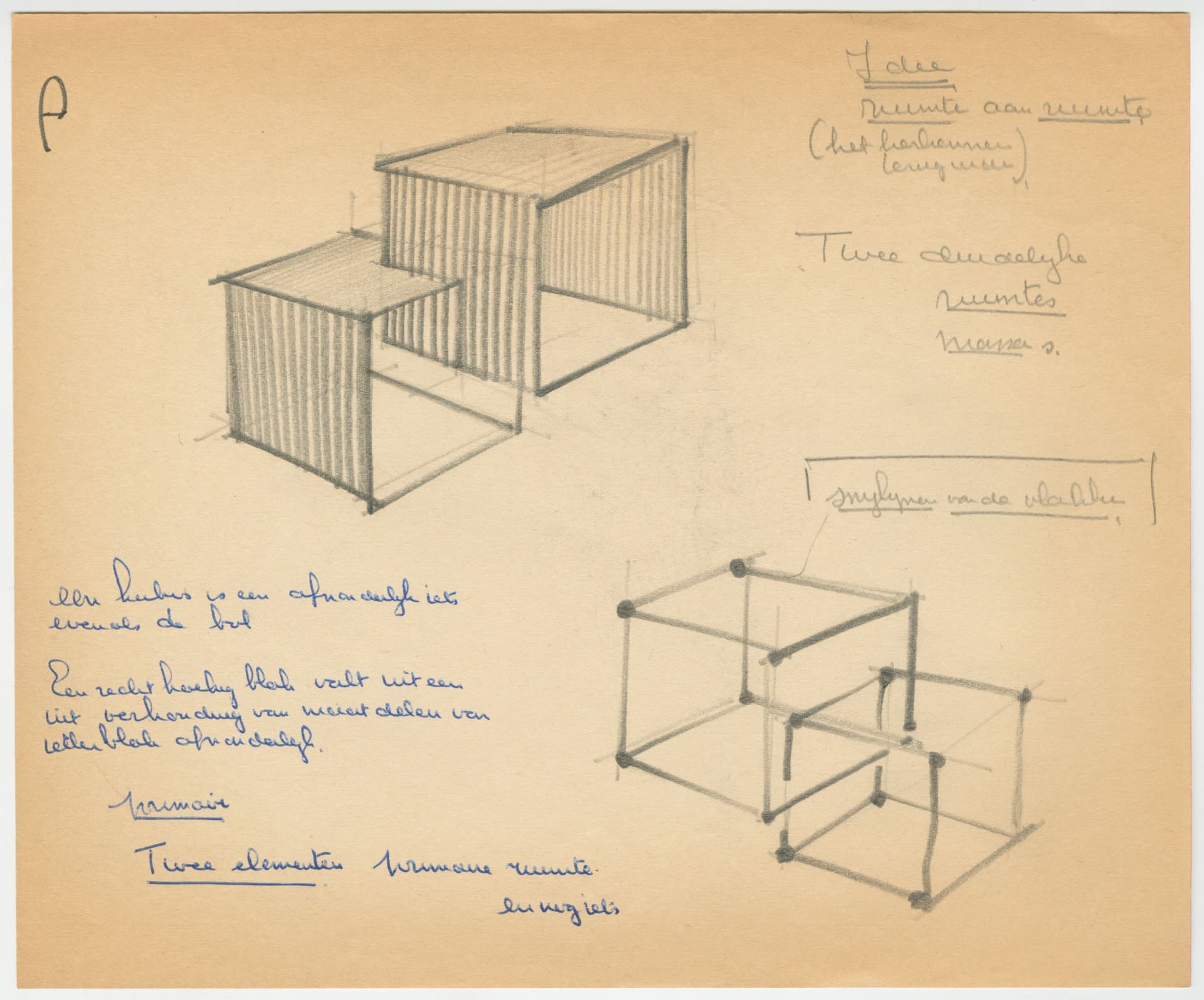

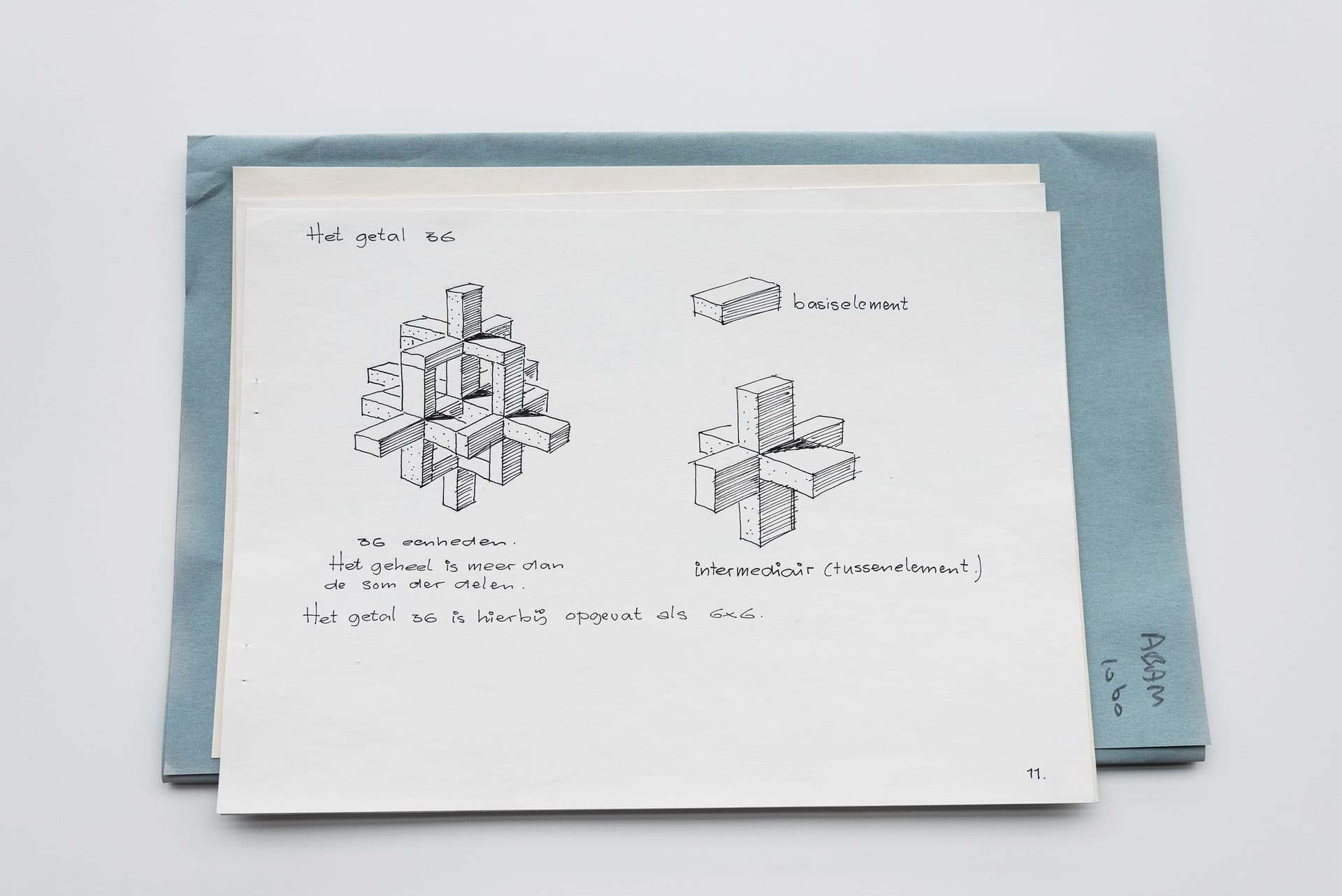

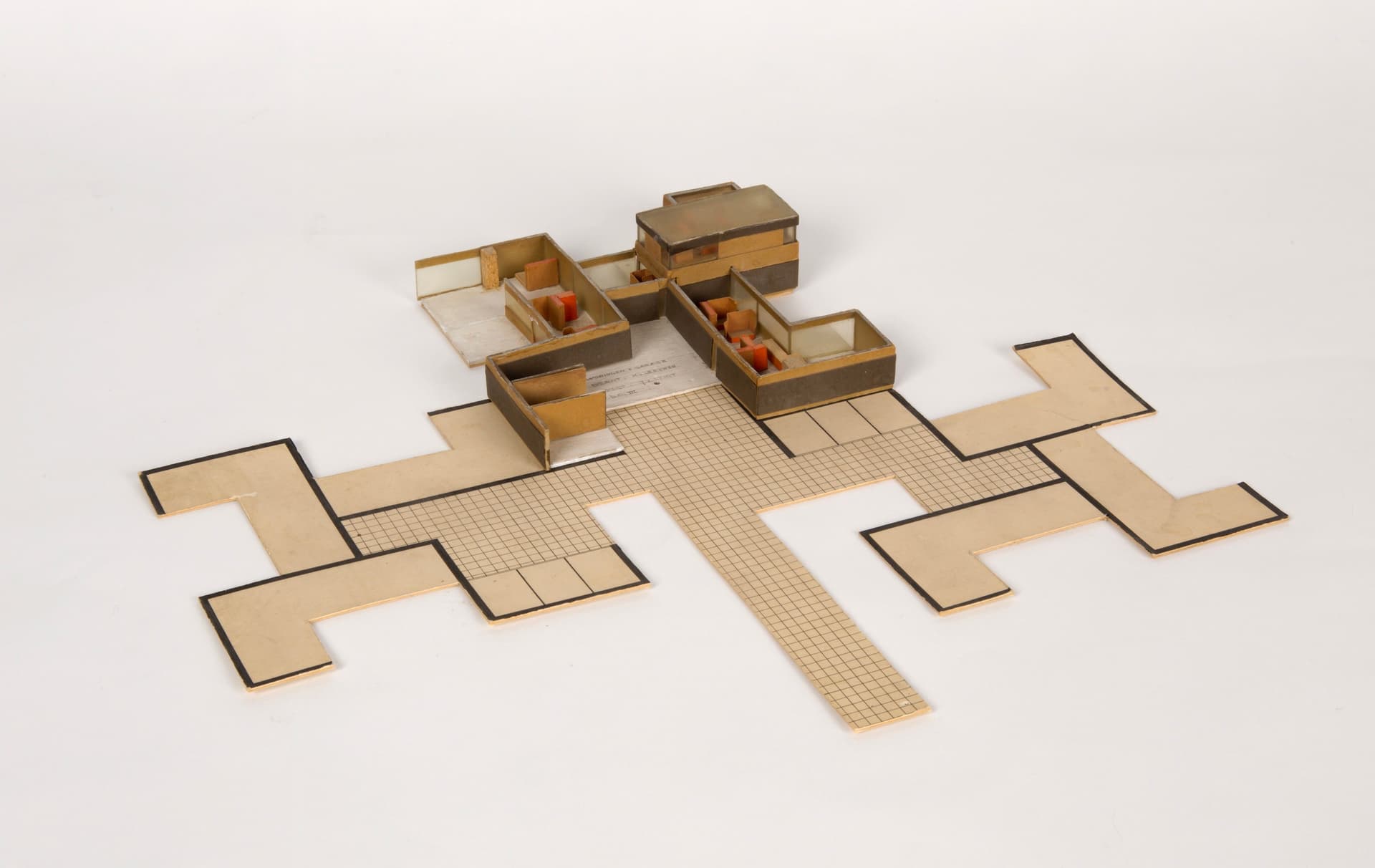

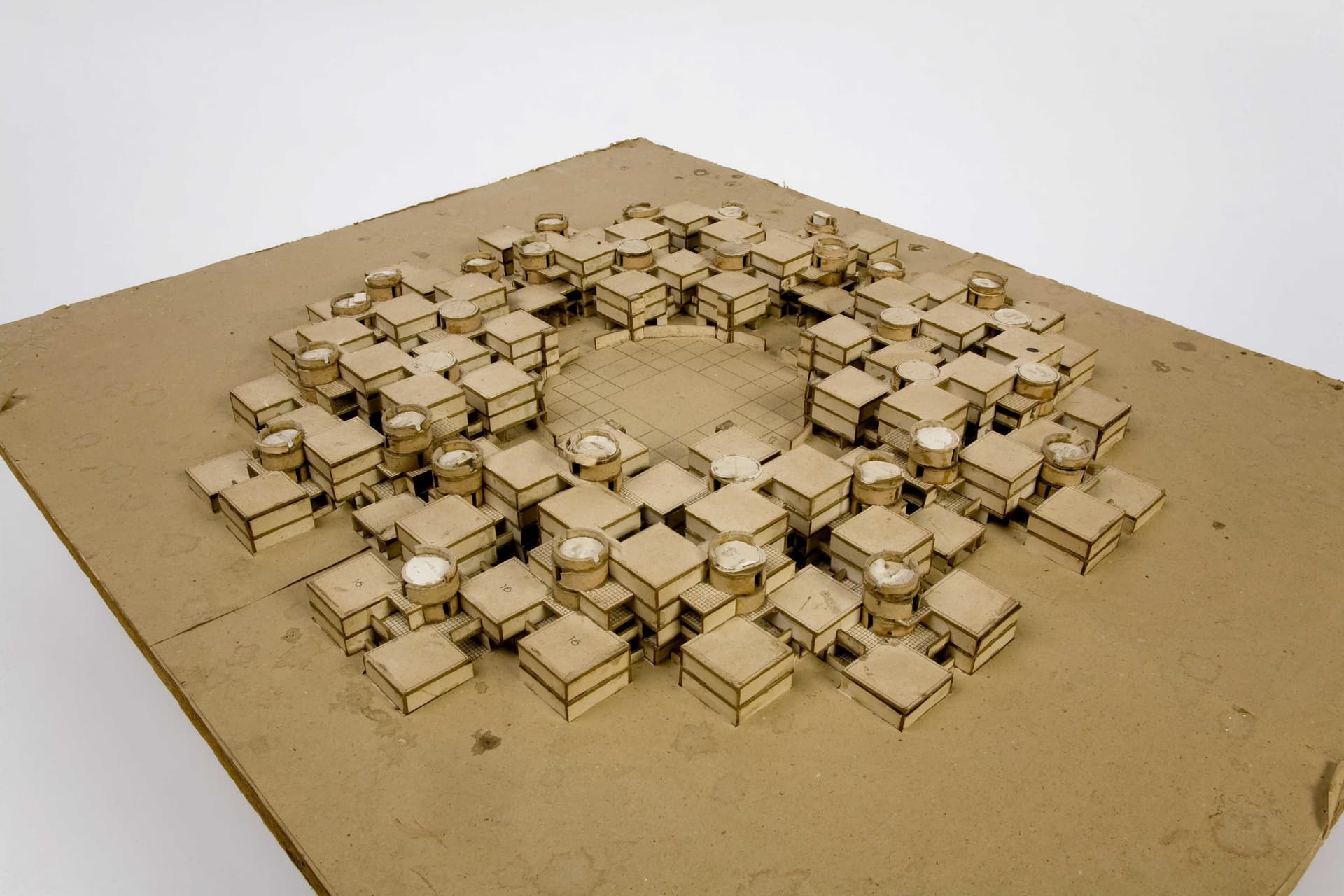

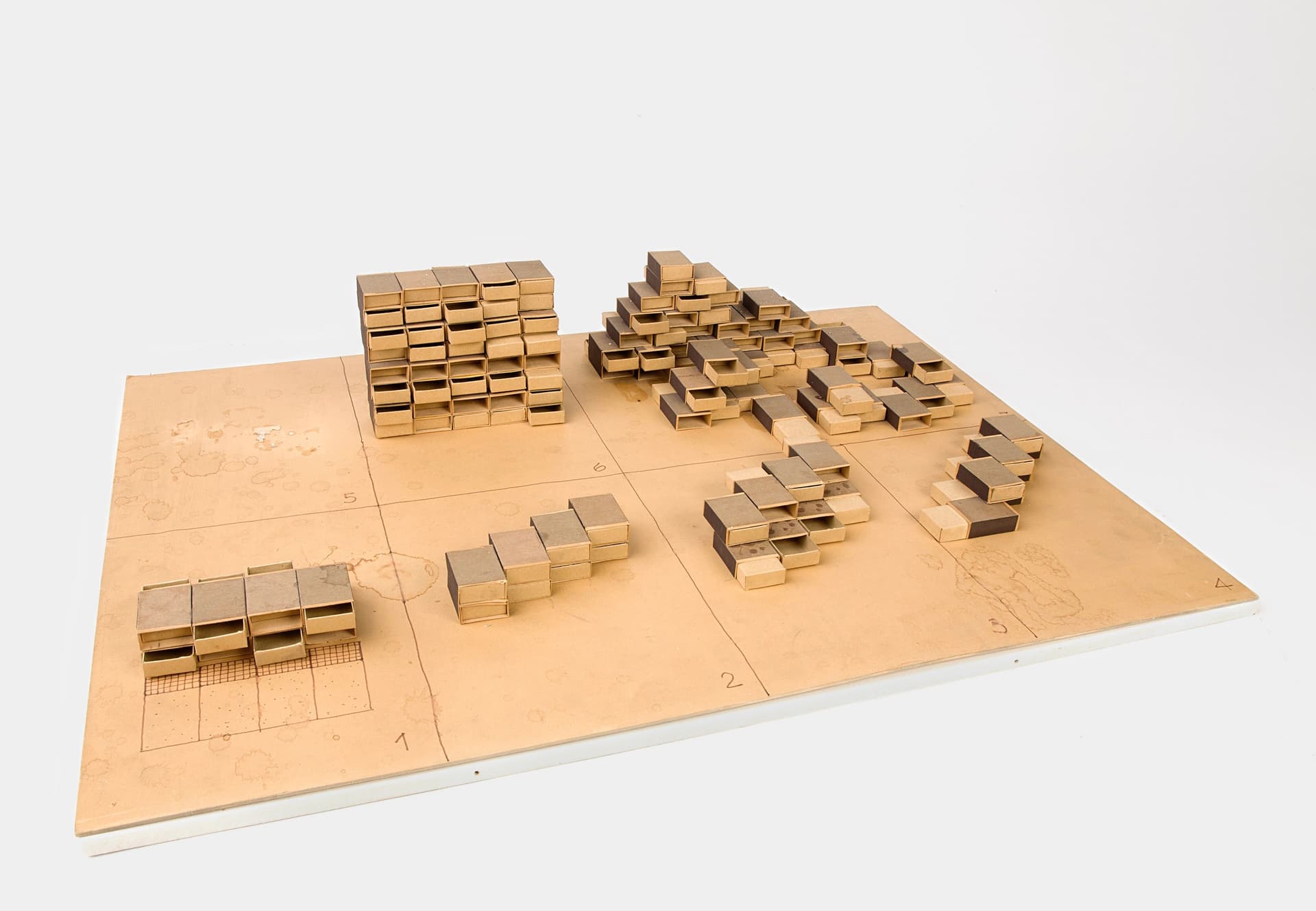

The design method based on the smallest module led to the use of a grid as the basis for the entire design. In theory the grid could be extended and built upon horizontally, vertically and diagonally. These spatial experiments during the design process were often given form in plastic studies, often cut away and executed in a single colour and material.

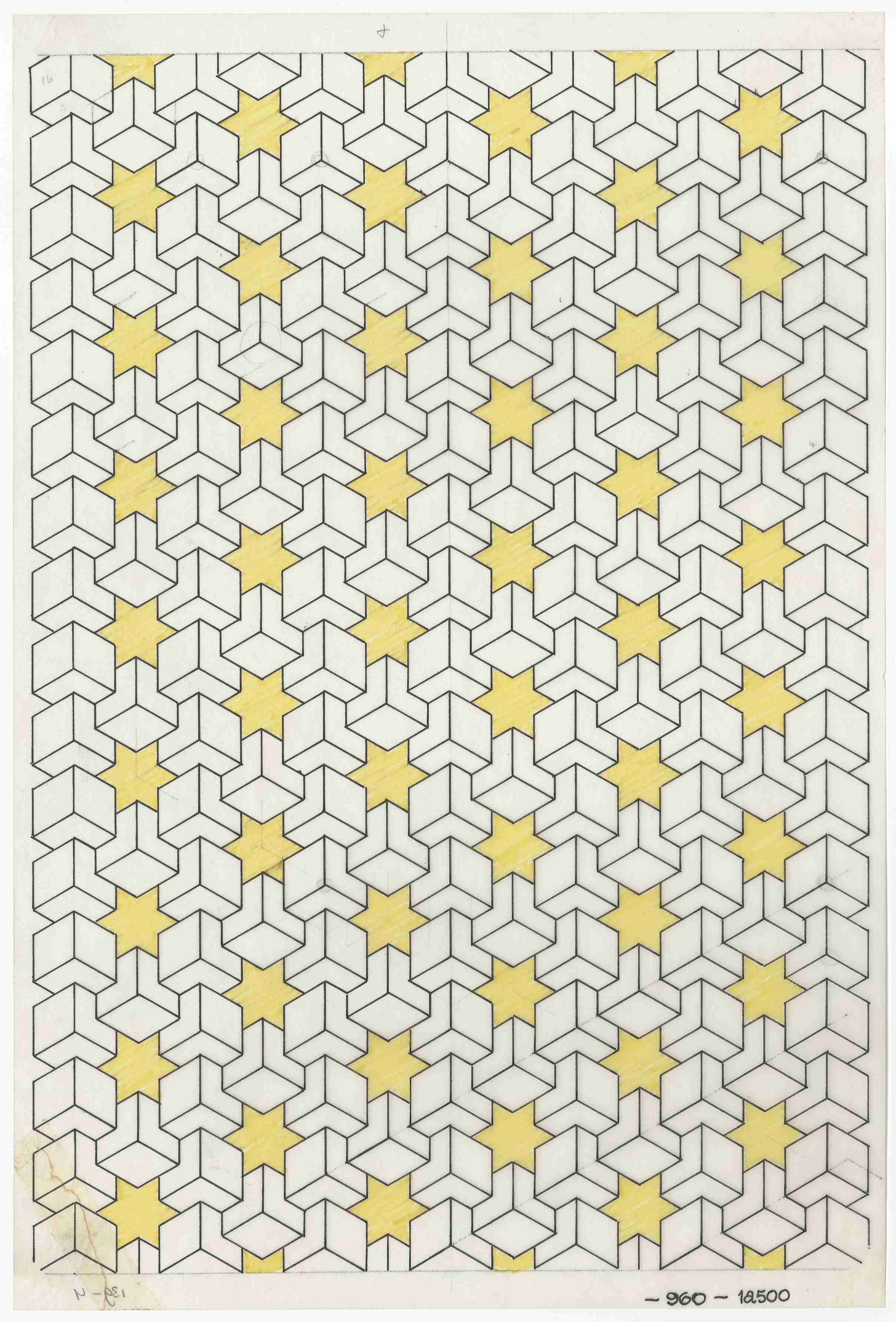

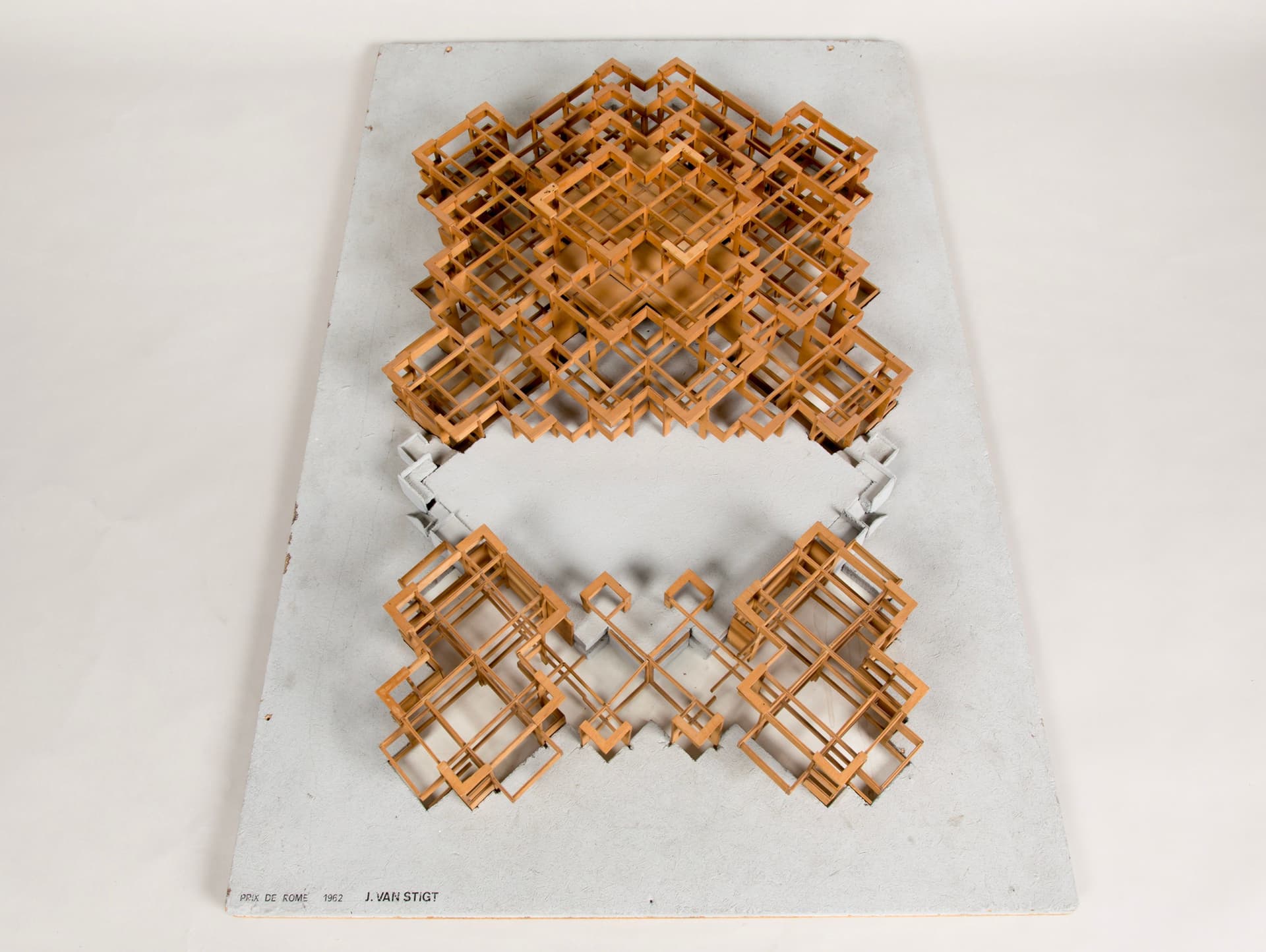

This type of design emerged at the Academie van Bouwkunst in Amsterdam in the 1960s: the plastic configurative design on the basis of a grid, which also expressed diagonal relationships between top and bottom and between length, height and width. The spatial and abstract studies of Blom and Van Stigt for the Prix de Rome (1962) are examples of this practice. The fascination with the grid is clear from seminars at the Academie van Bouwkunst, such as 'Het Getal' (The Number) in 1962, in which the three-dimensional representation of the grid was central, and Hertzberger's seminars in the 1960s. The set-up and structure of the grid relied upon the combination of a relevant mathematical structure and a suitable graphic or plastic technique so that it resulted in both a logical structure and a convincing image.
The horizontal section
The plan is one of the oldest means of representing an architectural design. The Structuralist architects made extensive use of this form because it was ideally suited to drawing a grid and 'coordinate lines' in order to work out the structure and the relationship between scale and number, and part and whole. Various horizontal sections were often drawn on tracing paper and at the same scale. Thanks to the transparency of this material, superimposing these drawings provided an insight into the spatial relationships between the various building layers.

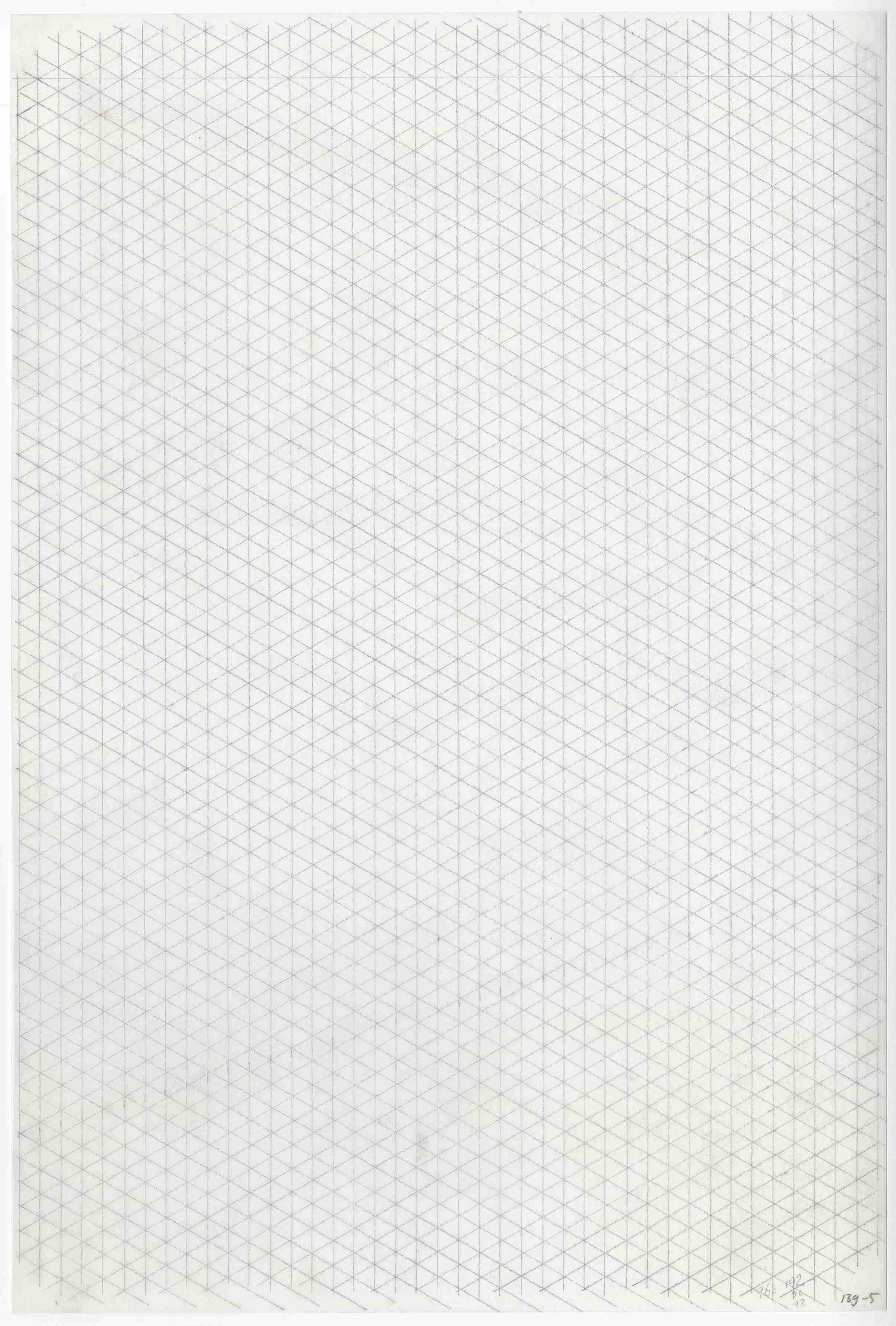

Gert Boon. Plan for the Merenwijk Housing Estate, Leiden, 1969-71. Collection Het Nieuwe Instituut, BOON t15-16. Boon often used graph paper as the basis of his designs. The grid provided structure and prevented him from ‘straying’ while conceptualising and visualising structures.

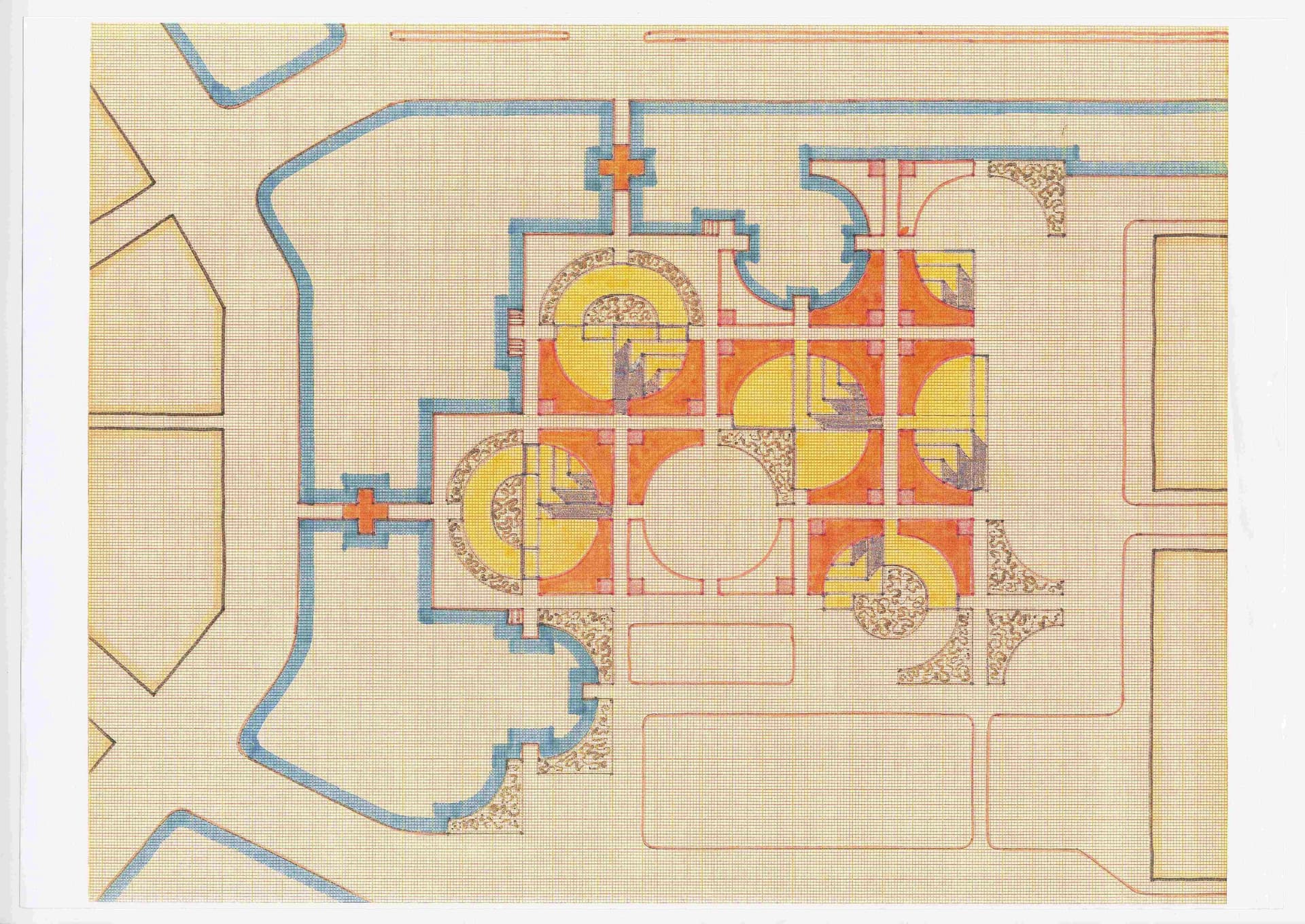

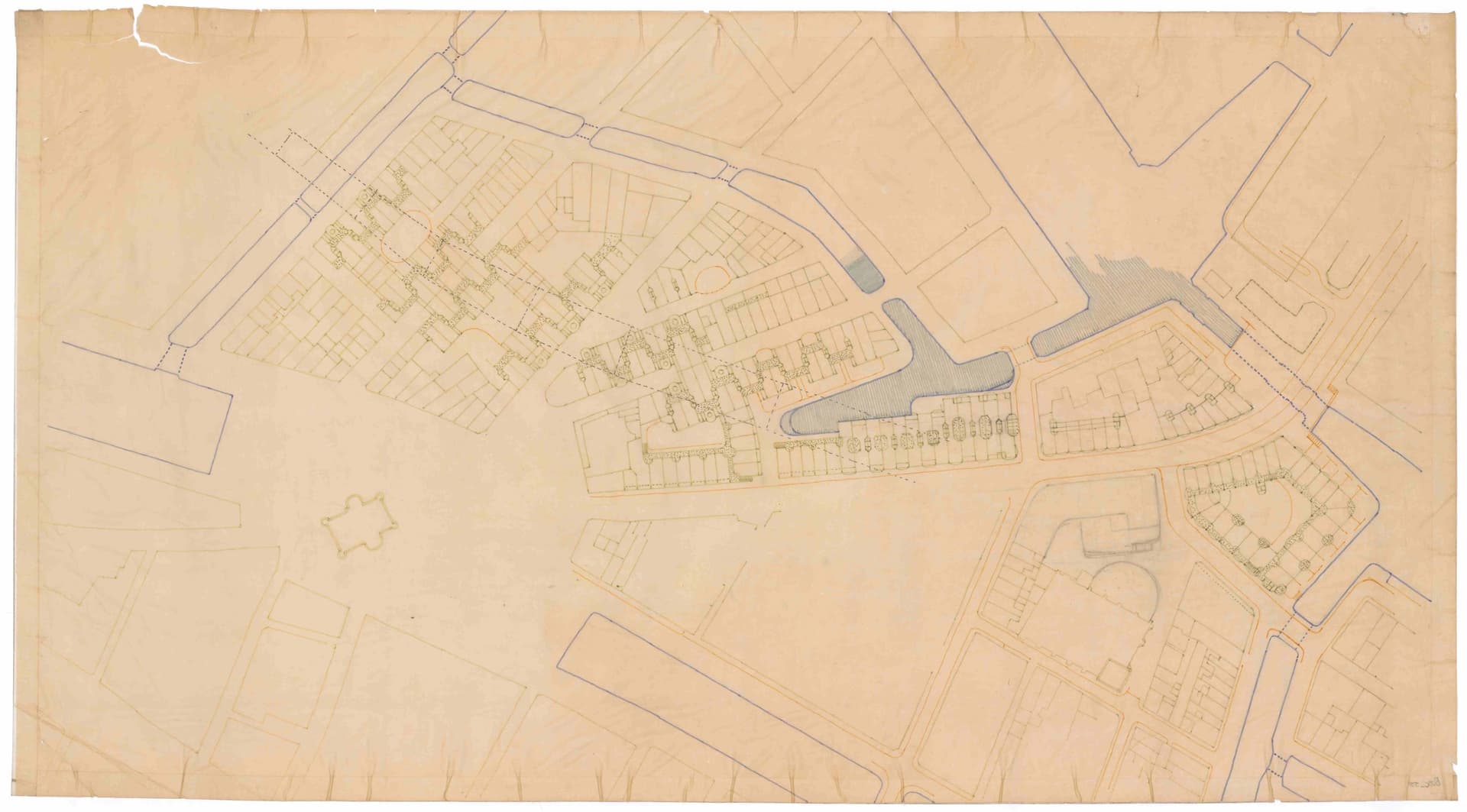

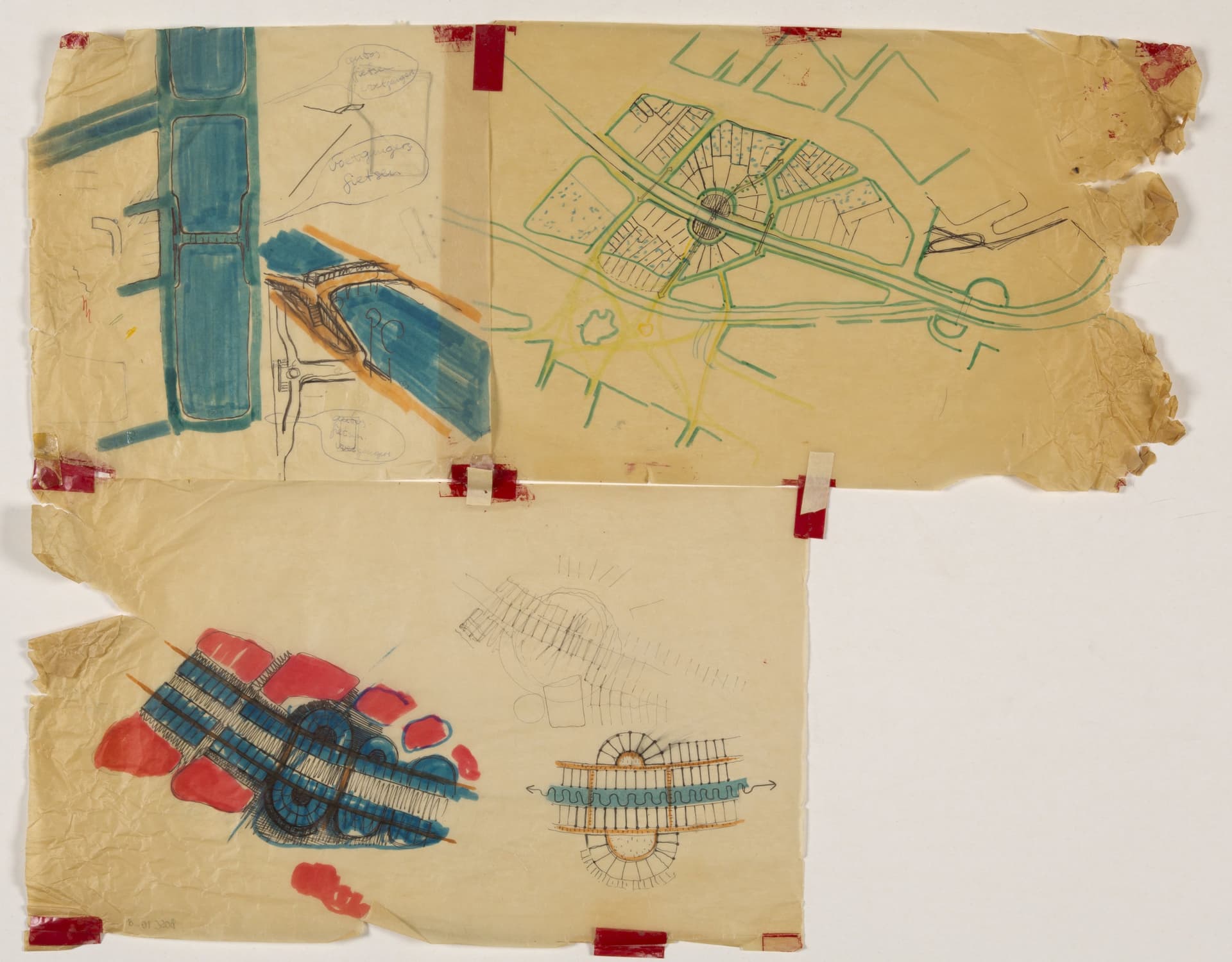

Aldo van Eyck and Theo Bosch Architects in association with G. Knemeijer, P. de Ley and D. Tuijnman. Interweaving of a new, flexible green structure within the existing geographic structure of the Nieuwmarkt, Amsterdam, 1969-75. Collection Het Nieuwe Instituut, BOSC 55

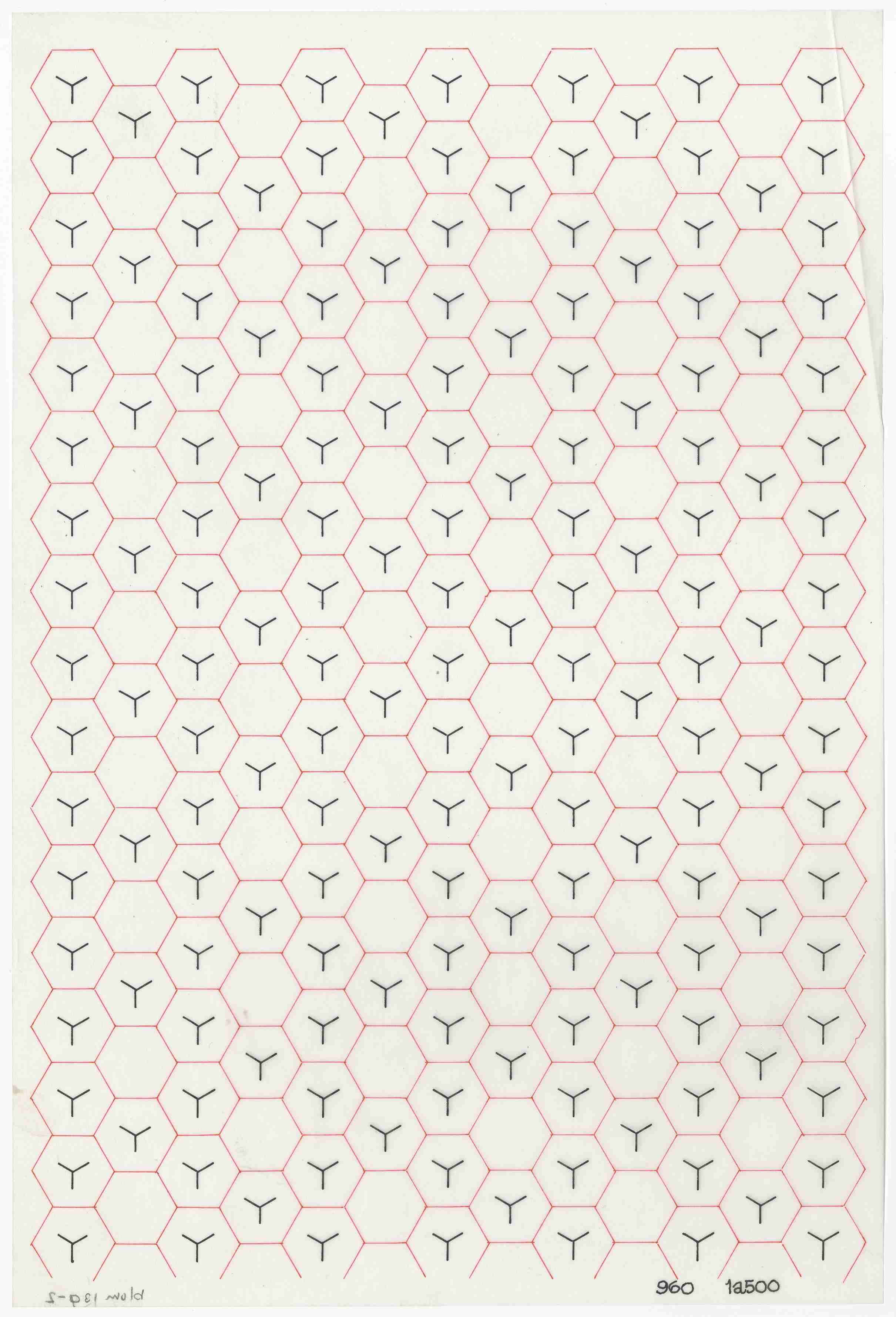

Piet Blom. Various horizontal sections of the ground and first floors of the Speelhuis theatre and Woningenwoud, scale 1:500, 1973. Collection Het Nieuwe Instituut, BLOM 139-1. The dimension 9.6 metres is the measure of the diagonal of a cube surface.
Piet Blom. Various horizontal sections of the ground and first floors of the Speelhuis theatre and Woningenwoud, scale 1:500, 1973. Collection Het Nieuwe Instituut, BLOM 139-1. The dimension 9.6 metres is the measure of the diagonal of a cube surface.
Piet Blom. Various horizontal sections of the ground and first floors of the Speelhuis theatre and Woningenwoud, scale 1:500, 1973. Collection Het Nieuwe Instituut, BLOM 139-1. The dimension 9.6 metres is the measure of the diagonal of a cube surface.
Piet Blom. Aerial view of the Speelhuis theatre and Woningenwoud with roofs and voids, scale 1:500, 1973. Collection Het Nieuwe Instituut, BLOM 139-4. The drawing is a combination of an isometric projection and a two-dimensional representation.
The hybrid drawing
The hybrid drawing consists of the simultaneous visualisation of several plans in a single drawing. The use of bright, contrasting colours clarifies the various spaces and their functions within the drawing. This type of drawing served to represent spatial visual relationships in the vertical, horizontal and diagonal planes. An example of this practice is Gert Boon's design drawings for the Amsterdam City Hall competition (1967).

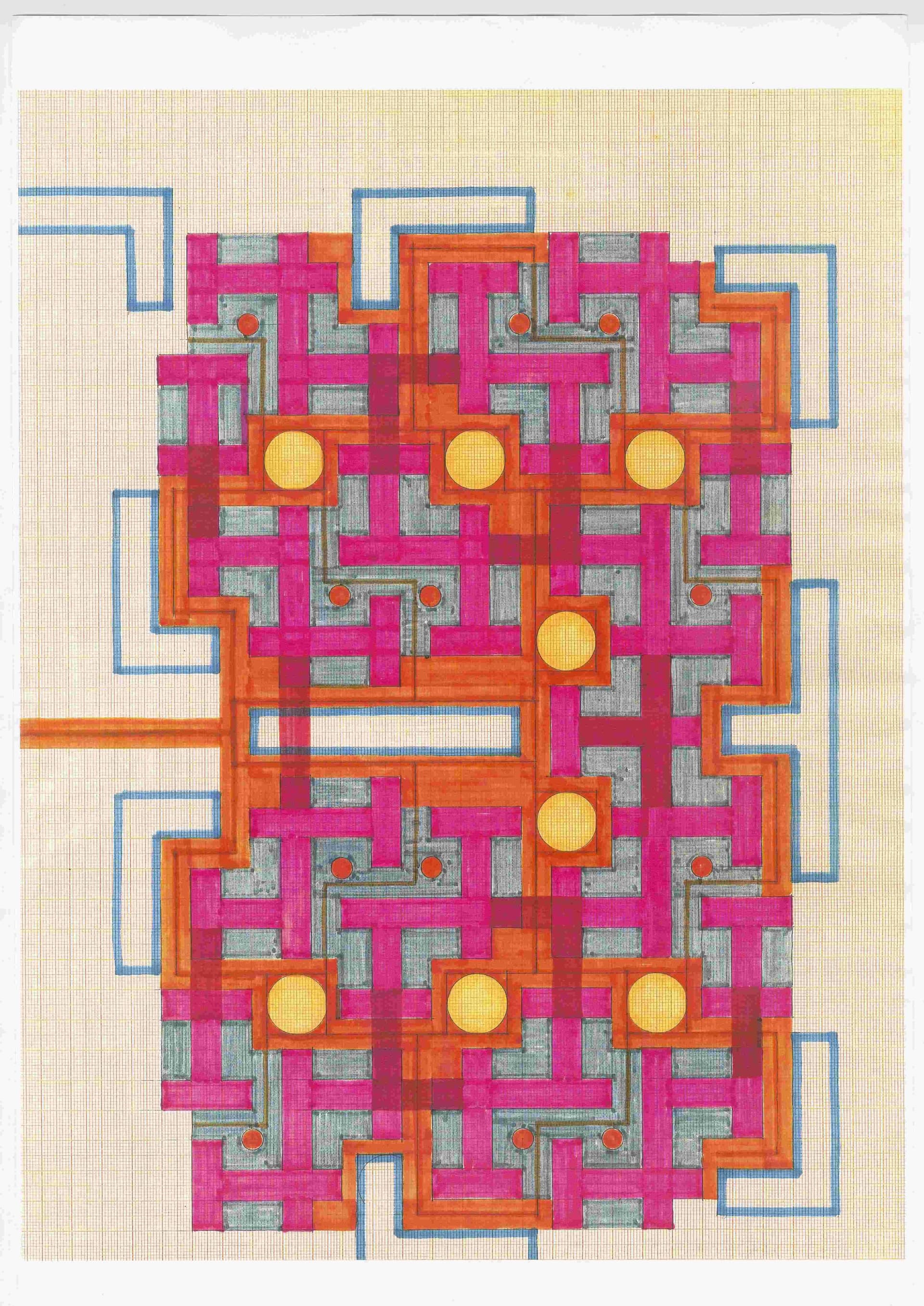

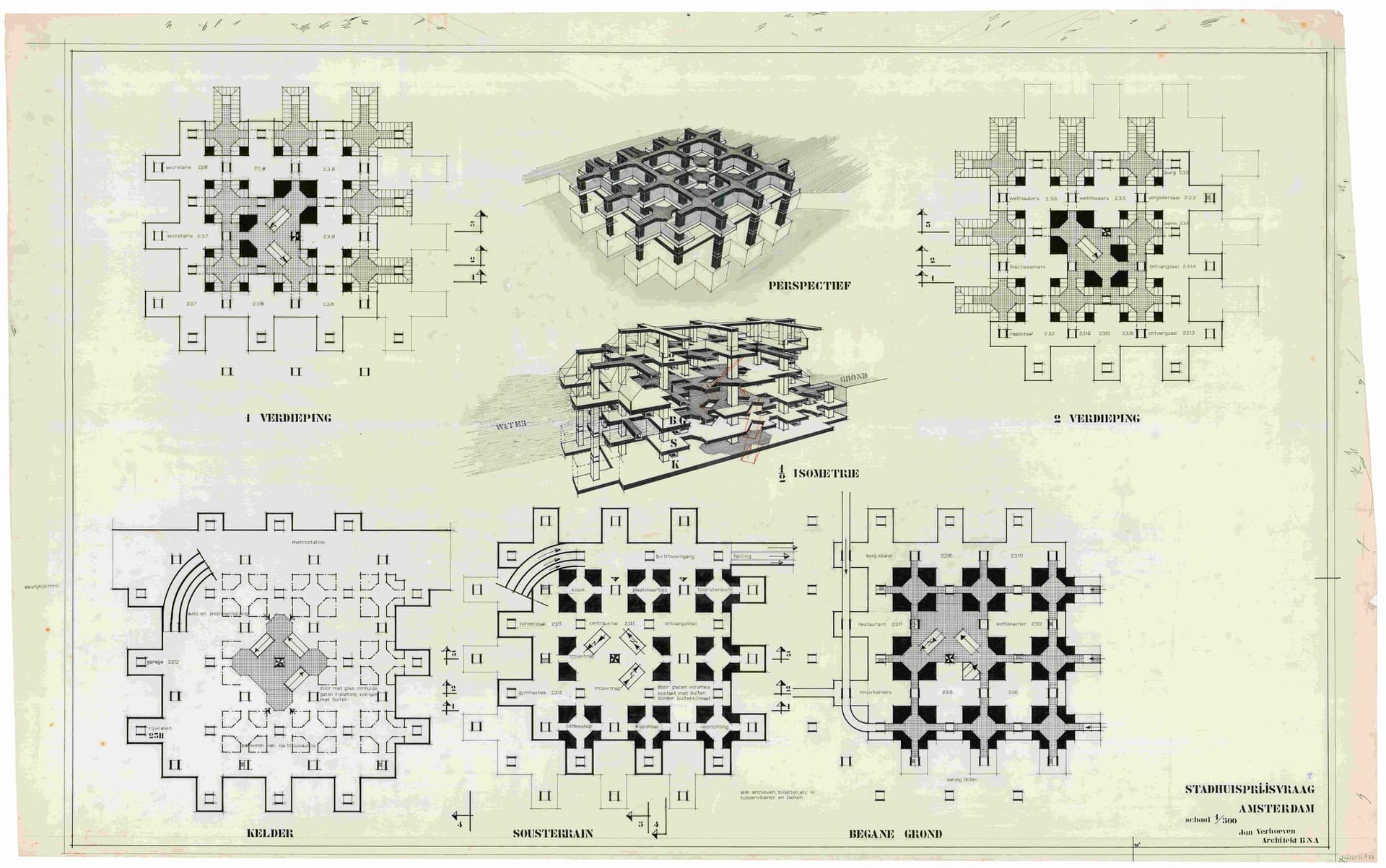

Gert Boon. Design drawing for the Amsterdam City Hall competition, 1967. Collection Het Nieuwe Instituut, BOON t13.1-1. Colour aids the visualisation of various levels within the City Hall and the spatial equivalence of various components. The public spaces and voids are in yellow and the City Hall functions are in orange.

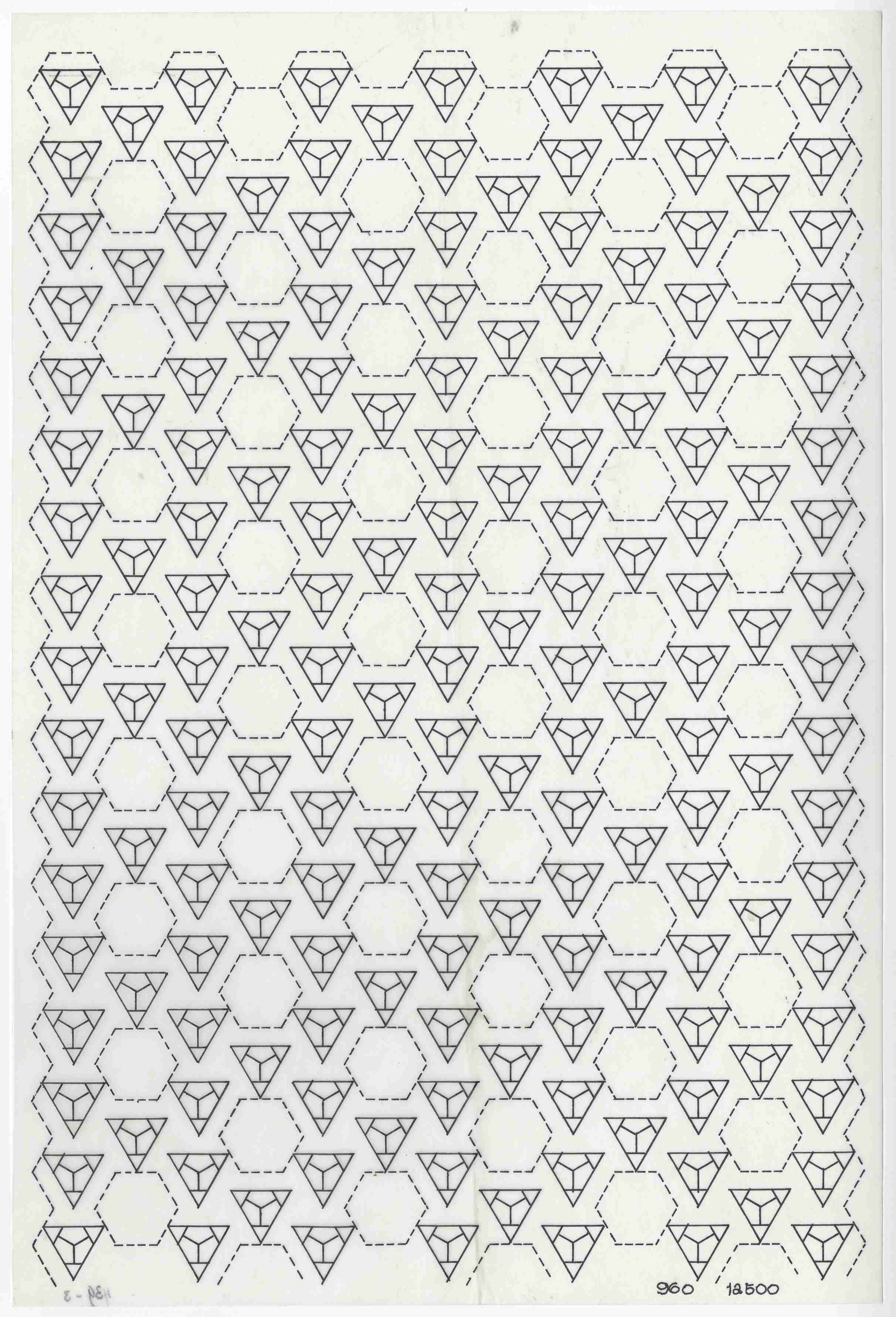

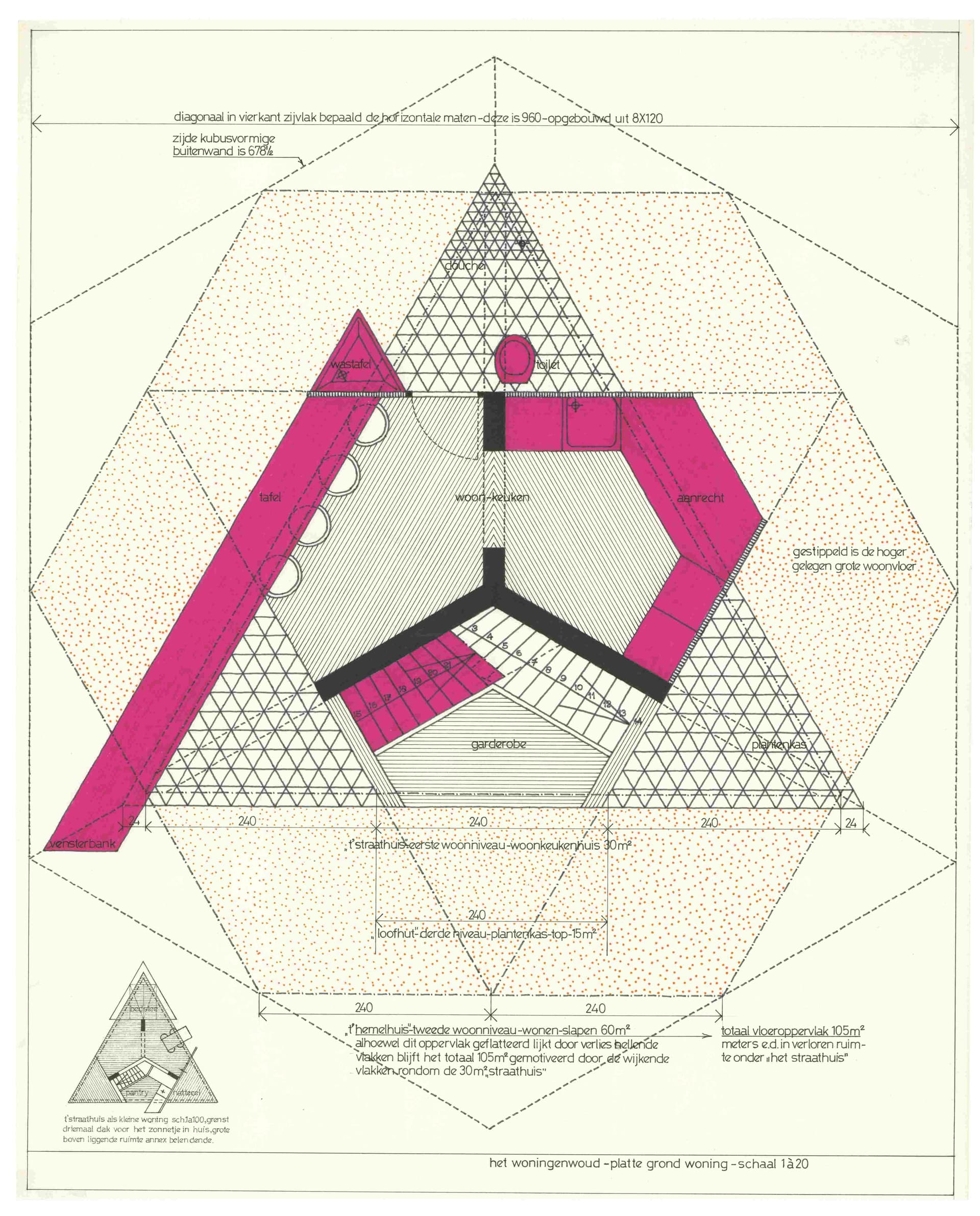

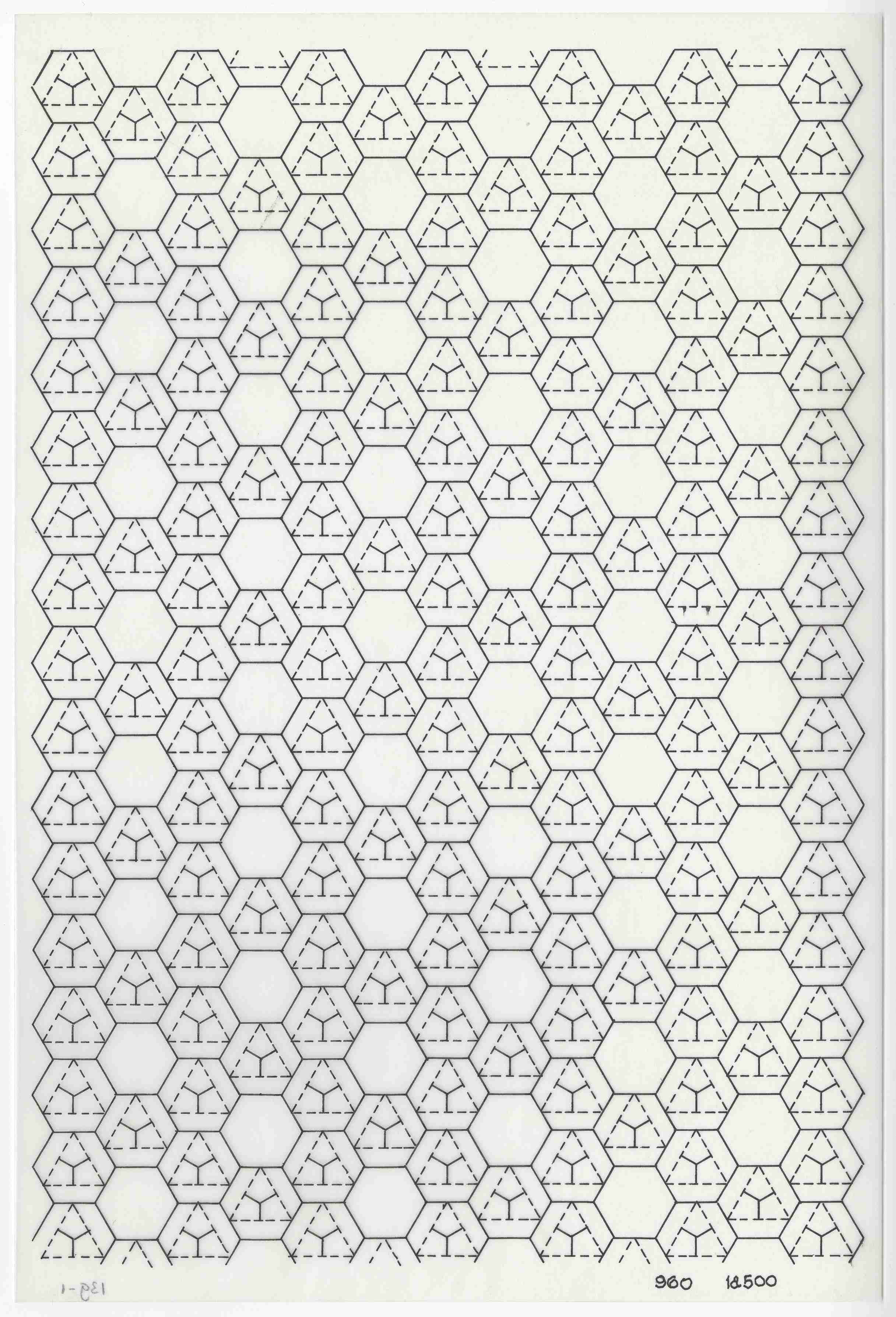

Piet Blom. Various plans for the Cube Houses in the Woningenwoud, Helmond, 1973. Collection Het Nieuwe Instituut, BLOM 138-1. The triangle represents a ‘Straathuis’ (Street House, 1st floor), the hexagon represents a ‘Hemelhuis’ (Sky House, 2nd floor) and the second triangle represents a ‘Loofhut’ (Tabernacle, 3rd floor).
Aldo van Eyck and Theo Bosch Architects in association with G. Knemeijer, P. de Ley and D. Tuijnman. The various drawing styles and uses of colour demonstrate the group design process on the Nieuwmarkt, Amsterdam, 1969-70. Collection Het Nieuwe Instituut, BOSC 10-8a
The narrative drawing

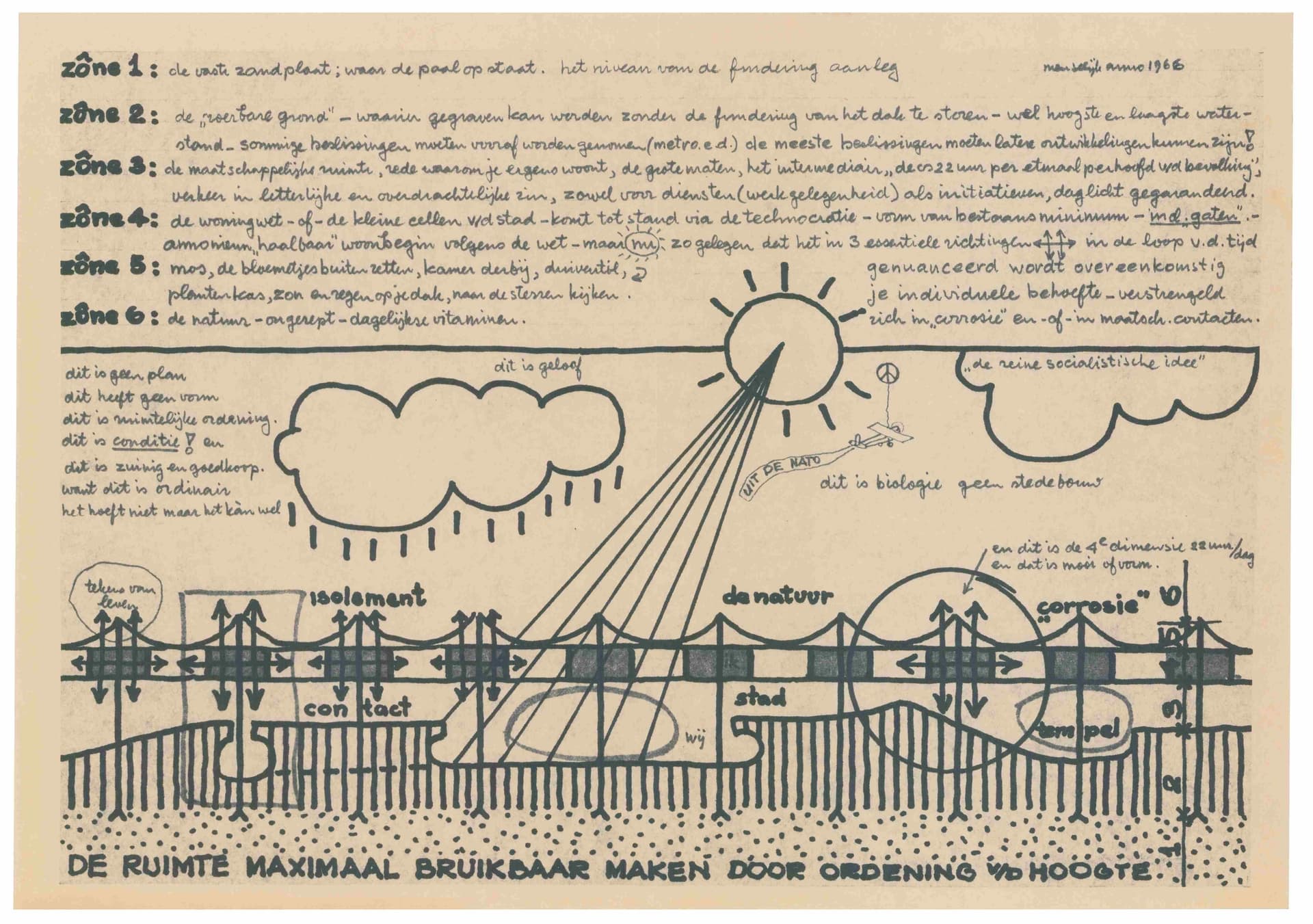

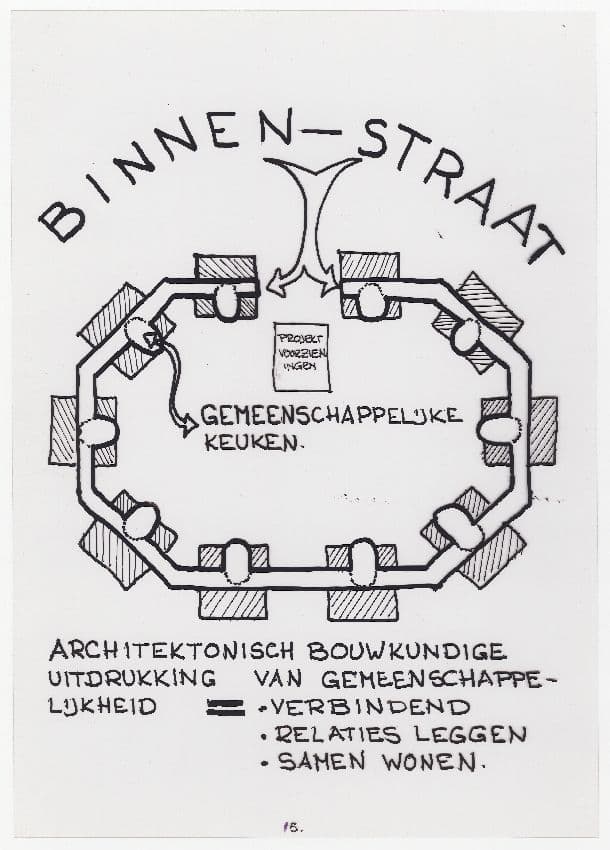

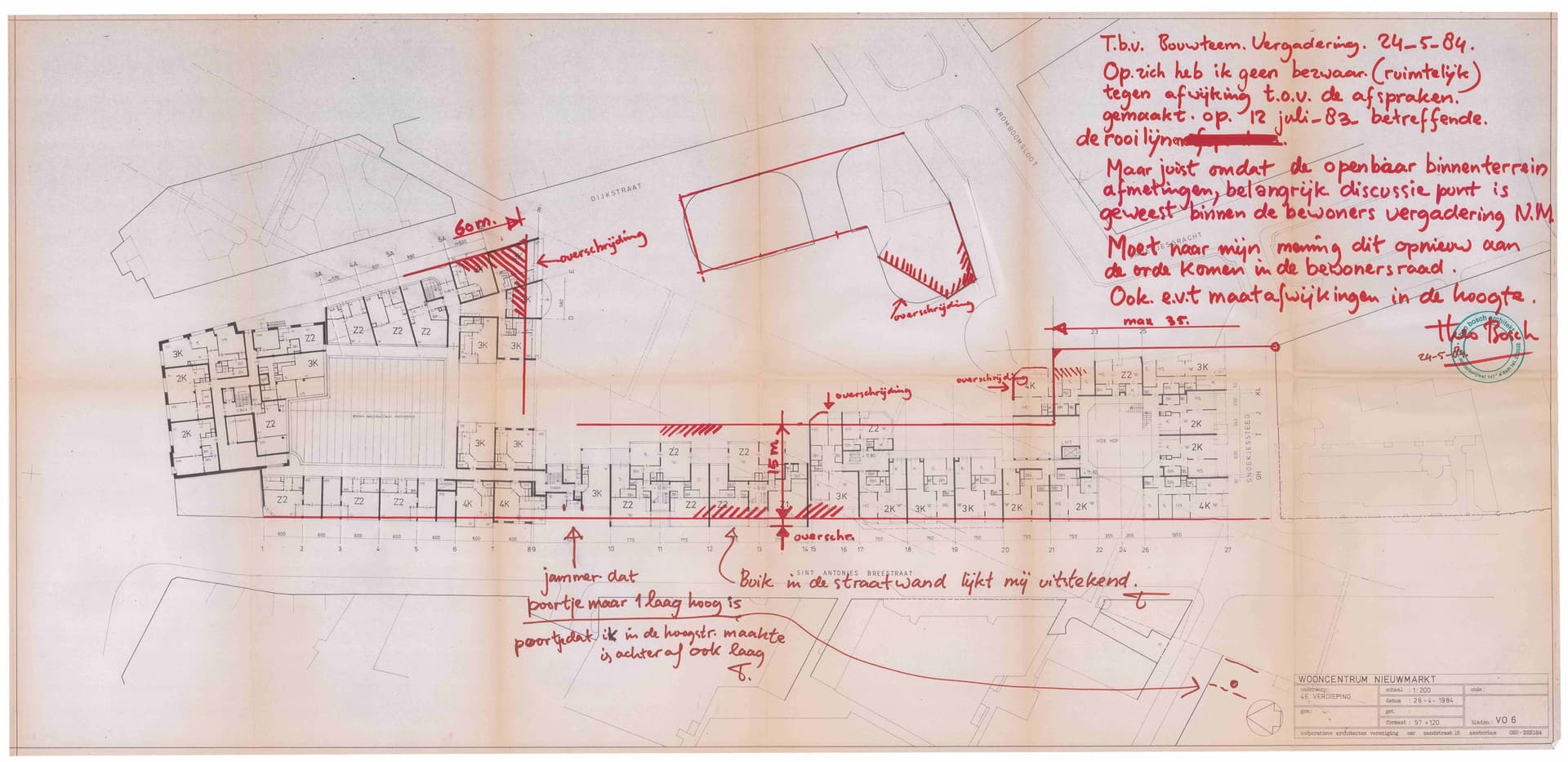

Narrative drawings contain considerable amounts of text, questions, recommendations, intellectual positions, poetry and explanation. The Structuralist architects probably used this type of drawing because architectural practice was in transition: architects were seeking a design method and a visual idiom that was in tune with a new vision of the organisation of society. These drawings demonstrate the growing communication between architects and society as a whole as a result of increased democratisation and public consultation. They also exhibit an affinity with contemporaneous visual art (Provo) and the graphic design of activist journalism.

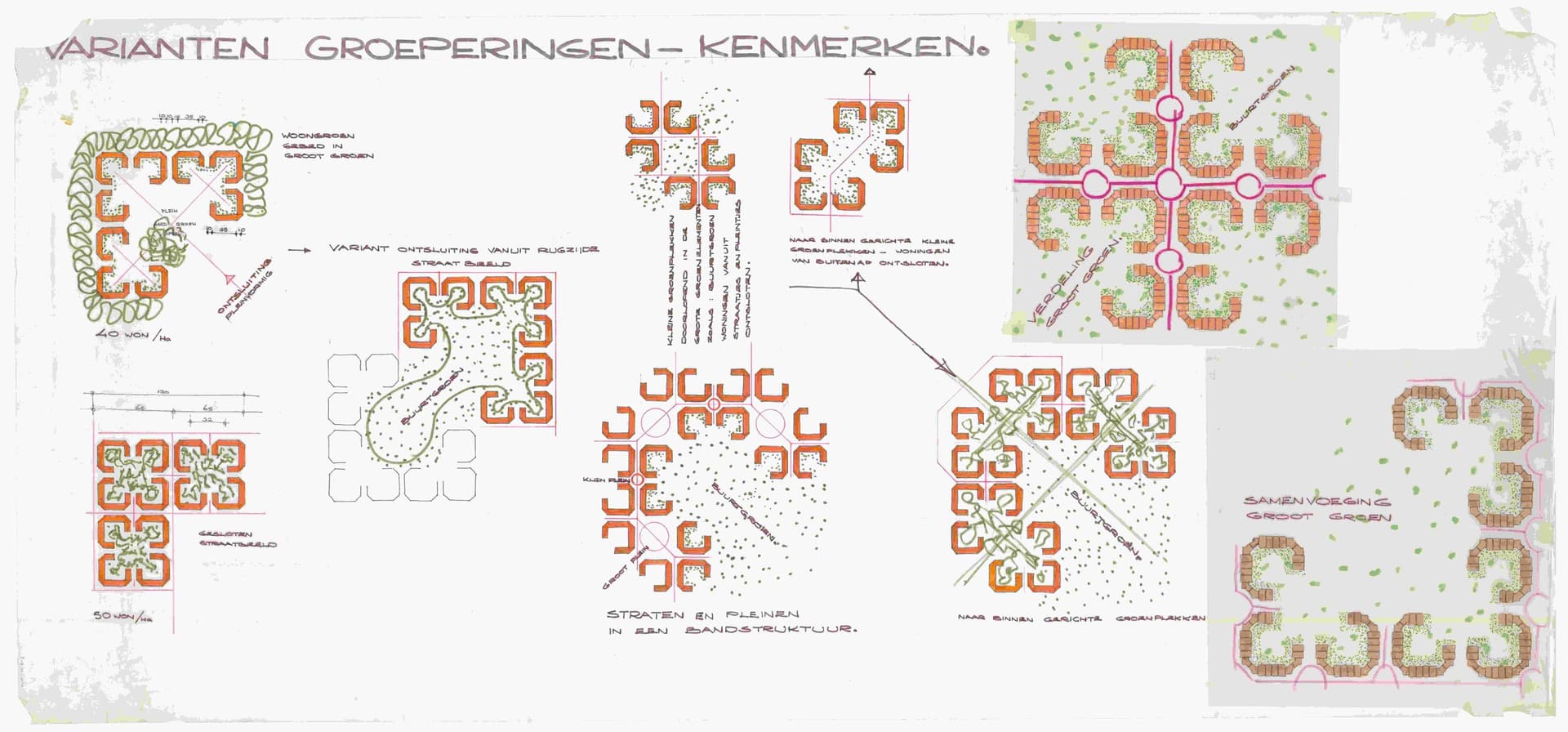

Joop van Stigt. Open and closed variants for the housing lots for Almere-Haven Oost, 1974-79. Collection Het Nieuwe Instituut, STIG 11.2-3. Van Stigt made explanatory drawings for the client and building contractors to convince them that the design was buildable.
